10/100Mbps Ethernet PoE Injector

PI100F

• Complies with IEEE 802.3af and IEEE 802.3at standards

• Delivers power up to 100 meters

• Auto-determine the necessary power requirements

• Install over-current protection circuit

• Plug-and-Play, no configuration required

Description
Specification

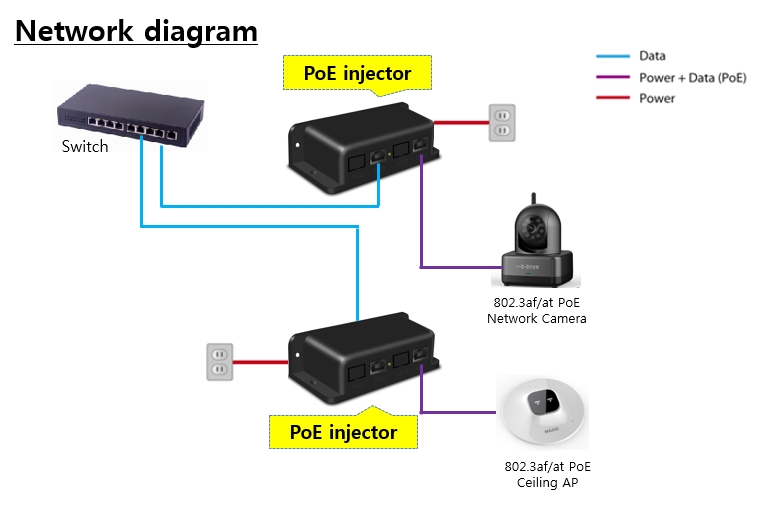

SONGLE 10/100Mbps PoE+ Injector, model PI100F, combines electrical power with a 10/100Mbps network connection to produce a 10/100Mbps PoE+ signal. Auto-sensing technology conveniently delivers the correct wattage needed to power your PoE and PoE+ devices. Connect the injector to a non-PoE 10/100Mbps switch and then run an Ethernet cable with data + power to network a PoE or PoE+ device up to 100 meters (328 ft.) away.

Standards	IEEE 802.3 IEEE 802.3u IEEE 802.3ab IEEE 802.3af IEEE 802.3at
Device Interface	1 x Fast Ethernet port 1 x PoE+ Fast Ethernet port LED indicators Wall mount
Data Transfer Rate	Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
Power	Input: 48 – 56 V DC Consumption: Max. 15/20/30 Watts
PoE	PoE budget: 30 Watts Pin 1,2 for power- and pin 3,6 for power+ (mode A)
Operating Temperature	0 - 50 °C (32 - 122 °F)
Operating Humidity	Max. 90% non-condensing
Dimensions	113.5(W) x 55.5(L) x 32.8(H)mm

10/100Mbps Ethernet PoE Injector Product Overview

The 10/100Mbps Ethernet PoE Injector is a professional-grade networking device developed by Hubei Songlei Network Technology Co., Ltd. It is designed for enterprise-class LAN and WAN scenarios, including office networks, campus deployment, surveillance systems and distributed network access. Every unit undergoes strict reliability testing to support 7x24 non-stop operation.

Engineered with high-quality components and industrial mounting options, the device fits desktop, rack and wall-mounted installations. Clear status indicators and a simplified configuration flow allow engineers to complete deployment quickly, reducing commissioning and maintenance costs.

Typical applications: SMB office networks, hotel networking, security monitoring access, smart-building projects, and network upgrades for education and healthcare institutions. It works seamlessly with the company's switches, routers, media converters and wireless range extenders to form complete networking solutions.

Purchasing service: Bulk orders and project-based supply are both supported. We provide model selection guidance, network design support and on-site technical assistance. All units come with official warranty; non-artificial damage is covered free of charge during the warranty period.

For detailed specifications, configuration guides or quotations, please visit our Contact page or call our hotline. Every order is shipped with proper warranty and after-sales support.
