1200M 11AC WI-Fi loT Security Hub

MR1200G-COMBO

• Complies with IEEE 802.11ac/a/n/g/b standards

• 867Mbps on 5GHz and 300Mbps on 2.4GHz band for total 1200Mbps simultaneously

• 253 clients under the device can share the internet connection with one IP at the same time

• Support centralized home IOT network for mobile phones and security sensors and TVs and more

• Support 4K UHD decoding performance and display movie on HDMI monitor

• Any multimedia data in the HDD can be decoded on any HDMI monitor with up to 4K resolution quality

• Mobile phone can be sync automatically with the media hub for automatic data back up

• Optional USB BLE Gateway Communicates with BLE Sensor such as Door sensor, PIR Sensor and others

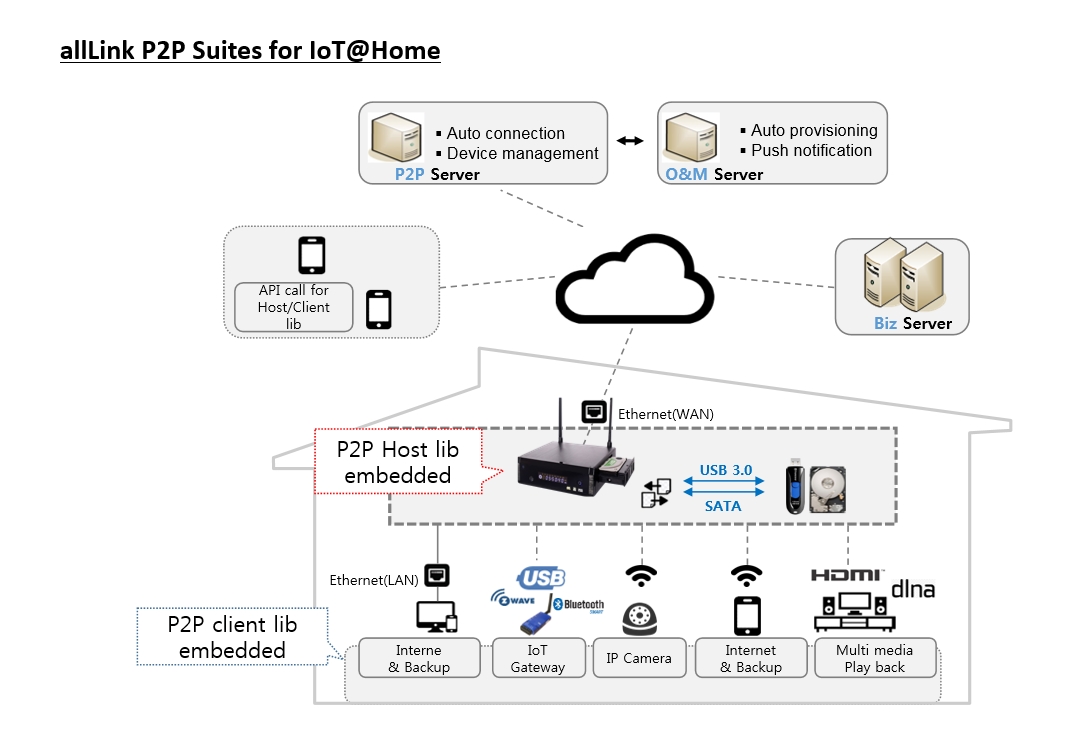

• allLink P2P Suites support Plug and Play configurations(NO DDNS, NO PC required for SW configration)

• allLink P2P Suites facilitates interactions between any smart nodes in the IOT network, streams multiple streams and more

• Provides 64/128-bit, WPA, WPA2 and WPA-Mixed security

• RTD1295 Chip, 2GB DDR4 16GB eMMC

• Support HDMI IN PIP Video recording and decoding rate for UHD 4K X 2K at the 60 frame rates

• Support HDMI IN with the Picture in Picture(PIP) function, video recording and SATA Hard Disk

• Support H.265/HEVC HW decoding

• Support decoding for all Dolby and DTS media contents

• Build in mobile rack for 3.5 inch SATA3.0 HDD

• Easy setup with auto-popup window simplifies the basic settings

• Supports free APPS(Android and IOS and PC)

Contact Us

























Hardware


CPURealtek RTD1295DD ARM Cortex-A53 Quad-Core Processer
GPUARM T820 GPU=Mail 450 Octa-Core equivalent
Memory2GB DDR4 up to 2400MHz
Flash8GB/16GB/32GB eMMC (Option)
4x PoE LAN10/100/1000M RJ45 Ethernet Ports(Auto MDI/MDIX)
1x WAN10/100/1000M RJ45 Ethernet Port(Auto MDI/MDIX)
Wi-Fi Network802.11 a/b/g/n/ac. 2.4G/5G Dual Channel Wi-Fi
SD Card SupportSupport SD3.0, Up to 128GB
Interface

1 x WAN : 10/100/1000M RJ45 Ethernet Ports(Auto MDI/MDIX)

4 x PoE LAN : 10/100/1000M RJ45 Ethernet Ports(Auto MDI/MDIX)

USB Host : 2 x USB 2.0, 1 x USB3.0 Slave, 1 x Type-C

HDMI : 1x HDMI Output(3840x2160@60P 10BIT, HDMI2.0a), 1x HDMI Input(HD PVR)

HDD : 1 x SATA 3.0, Up to 10TB HDD

1x Optical SPDIF

1x LCD touch panel support Device setup and indicate operational status

Antenna2 x 2.4/5GHz 5dBi Shared Antenna
Operating temperature0 ~ 40℃
Storage temperature-20 ~ 70℃
Humidity10 ~ 95% non-condensing
Dimension188(W) x 172(H) x 60(D)mm




Software


OSGoogle Android 6.0.1
File SystemFAT32, NTFS
Video FormatsSupports  H.265, H.264, H.263, VC-1, MPEG-1/2/4
Audio FormatsSupports MP3, FLAC, AAC, WMA, APE, AMR, MID, OGG, WAV ,Dolby TrueHD,DTS HD,and other audio formats
Picture FormatsJPG, JPEG, BMP, GIF, PNG
NASFile Upload/Download , Auto Backup , AV Streaming
LanguageEnglish, Germany, Japanese, Korean, Russian and others
ProtocolDLNA/HLS/P2P/Onvif/RTSP
Supports Free APPS







1200M 11AC WI-Fi loT Security Hub Product Overview

The 1200M 11AC WI-Fi loT Security Hub is a professional-grade networking device developed by Hubei Songlei Network Technology Co., Ltd. It is designed for enterprise-class LAN and WAN scenarios, including office networks, campus deployment, surveillance systems and distributed network access. Every unit undergoes strict reliability testing to support 7x24 non-stop operation.

Engineered with high-quality components and industrial mounting options, the device fits desktop, rack and wall-mounted installations. Clear status indicators and a simplified configuration flow allow engineers to complete deployment quickly, reducing commissioning and maintenance costs.

Typical applications: SMB office networks, hotel networking, security monitoring access, smart-building projects, and network upgrades for education and healthcare institutions. It works seamlessly with the company's switches, routers, media converters and wireless range extenders to form complete networking solutions.

Purchasing service: Bulk orders and project-based supply are both supported. We provide model selection guidance, network design support and on-site technical assistance. All units come with official warranty; non-artificial damage is covered free of charge during the warranty period.

For detailed specifications, configuration guides or quotations, please visit our Contact page or call our hotline. Every order is shipped with proper warranty and after-sales support.
