1200M 11AC WI-Fi NVR Router

SN1200G-USB

• Complies with IEEE 802.11ac/a/n/g/b standards

• 867Mbps on 5GHz and 300Mbps on 2.4GHz band for total 1200Mbps simultaneously

• Supports DHCP/Static IP/PPPoE broadband functions

• Provides 64/128-bit, WPA, WPA2 and WPA-Mixed security

• Super speed USB3.0 Host for storage devices

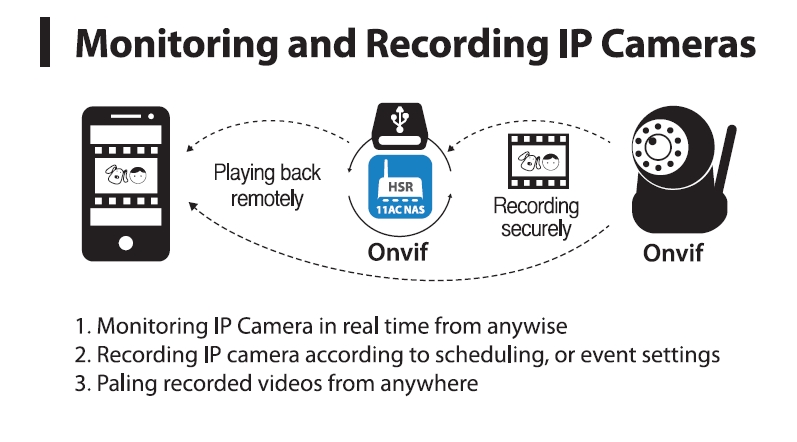

• View live video at 30 fps

• Support constant, event and scheduled recording

• Playing back recorded files remotely

• allLink P2P Suites support Plug and Play configurations(NO DDNS, NO PC required for SW configration)

• allLink P2P Suites facilitates interactions between any smart nodes in the IOT network, controlling sensors, recording videos and others

• Easy setup with auto-popup window simplifies the basic settings

• Send push notification to mobile phones when the device detects triggered events

• Supports VLAN, SNMP, SSH, IPv6, WDS, Multiple SSIDs, WPS, QoS, Wi-Fi Schedule

• Supports Free APPS(Android and Ios and PC)

Description
Specification

Hardware

Standards	IEEE 802.11ac/n/a 5GHz, IEEE 802.11n/g/b 2.4GHz
Frequency Range	5.1 ~ 5.8GHz, 2.412 ~ 2.484GHz
Interface	4x LAN : 10/100/1000M RJ45 Ethernet Ports(Auto MDI/MDIX) 1x WAN : 10/100/1000M RJ45 Ethernet Port(Auto MDI/MDIX) USB Host : 1x USB3.0
Antenna	2x 5GHz 5dBi External Antenna, 2x 2.4GHz 5dBi External Antenna
Button	1x WPS, 1x Reset
LED	1x Power, 1x 2.4G Wi-Fi, 1x 5G Wi-Fi, 1x USB3.0, 1x HDMI, 1x HDD, 1x WAN, 4x LAN
Operating temperature	0 ~ 40℃
Storage temperature	-20 ~ 70℃
Humidity	10 ~ 95% non-condensing

Software

OS	Google Android 6.0.1
File System	FAT32, NTFS
Video Formats	Supports H.265, H.264, H.263, VC-1, MPEG-1/2/4
Audio Formats	Supports MP3, FLAC, AAC, WMA, APE, AMR, MID, OGG, WAV ,Dolby TrueHD,DTS HD,and other audio formats
Picture Formats	JPG, JPEG, BMP, GIF, PNG
NAS	File Upload/Download , Auto Backup , AV Streaming
Language	English, Germany, Japanese, Korean, Russian and others
Protocol	DLNA/HLS/P2P/Onvif/RTSP
Supports Free APPS

1200M 11AC WI-Fi NVR Router Product Overview

The 1200M 11AC WI-Fi NVR Router is a professional-grade networking device developed by Hubei Songlei Network Technology Co., Ltd. It is designed for enterprise-class LAN and WAN scenarios, including office networks, campus deployment, surveillance systems and distributed network access. Every unit undergoes strict reliability testing to support 7x24 non-stop operation.

Engineered with high-quality components and industrial mounting options, the device fits desktop, rack and wall-mounted installations. Clear status indicators and a simplified configuration flow allow engineers to complete deployment quickly, reducing commissioning and maintenance costs.

Typical applications: SMB office networks, hotel networking, security monitoring access, smart-building projects, and network upgrades for education and healthcare institutions. It works seamlessly with the company's switches, routers, media converters and wireless range extenders to form complete networking solutions.

Purchasing service: Bulk orders and project-based supply are both supported. We provide model selection guidance, network design support and on-site technical assistance. All units come with official warranty; non-artificial damage is covered free of charge during the warranty period.

For detailed specifications, configuration guides or quotations, please visit our Contact page or call our hotline. Every order is shipped with proper warranty and after-sales support.
